How Accurate Site Levels Help Maximise Floor Space on Sloped or Complex Blocks

Building on a sloped or irregular block presents unique challenges, but it also opens doors to smart design opportunities. One of the most critical tools for maximising the benefits of such sites is an accurate site-level survey. Done properly, it helps your building fit the land, maximise space, cut earthworks, and meet local planning rules. In this guide, experts at MCS Surveyors will help explore how precise site levels can guide smarter construction decisions.

You'll learn how expert land surveyors in Sydney use advanced technology to turn tricky blocks into fully utilised, high-performing spaces, whether you're planning a split-level home, a hillside commercial build, or anything in between. Let's get started!

‍

‍

What Are Site Levels and How Are They Measured?

Before any ground is broken, one thing needs to be crystal clear - what the land is actually doing. Site levels tell you how the land rises and falls, helping shape everything from drainage to floor height. In this section, we’ll break down what site levels, RLs, and contours mean, and why accurate measurement matters so much, especially on sloped or complex blocks.

‍

Defining Site Levels

Site levels refer to the vertical and horizontal measurements that define the topography of a land area. They reveal the land’s slope, which affects drainage, design, and how usable the site is. Accurate site levels help in planning earthworks, ensuring efficient water runoff, and avoiding issues related to soil erosion and flooding.

‍

Understanding Reduced Levels (RLs)

RLs are a vital component of site-level measurements. It’s a height reference point used in surveying to determine the elevation of a particular point relative to a datum, typically mean sea level. RLs give surveyors a consistent elevation reference across the site. This consistency is critical for aligning construction elements, such as foundations, floors, and roofs, ensuring they are at the correct elevation relative to each other and the surrounding landscape.

‍

The Role of Contours

Contours are essential for planning on sloped or complex sites. These curved lines, drawn on a site plan, represent points of equal elevation and give a visual snapshot of the land’s topography. Accurate contour mapping allows architects, builders, and developers to visualise the rise and fall of the land and make informed decisions that maximise floor space without compromising on design, safety, or compliance.

Why Contours Matter:

• Identify high and low points: Contours reveal the natural slope of the site, showing where cut and fill may be needed to level areas for construction.

• Assist with bushfire and environmental compliance: In bushfire-prone zones, contour data helps determine defensible space and compliance with BAL (Bushfire Attack Level) requirements.

• Maximise solar access and views: Knowing the site’s elevation changes lets you orient your building to take advantage of sunlight and natural vistas.

‍

Tools and Technology for Accurate Measurement

Surveyors rely on a variety of tools and technologies to measure site levels with precision. Traditional tools like theodolites and levelling instruments are now complemented by advanced technologies, ensuring higher accuracy and efficiency.

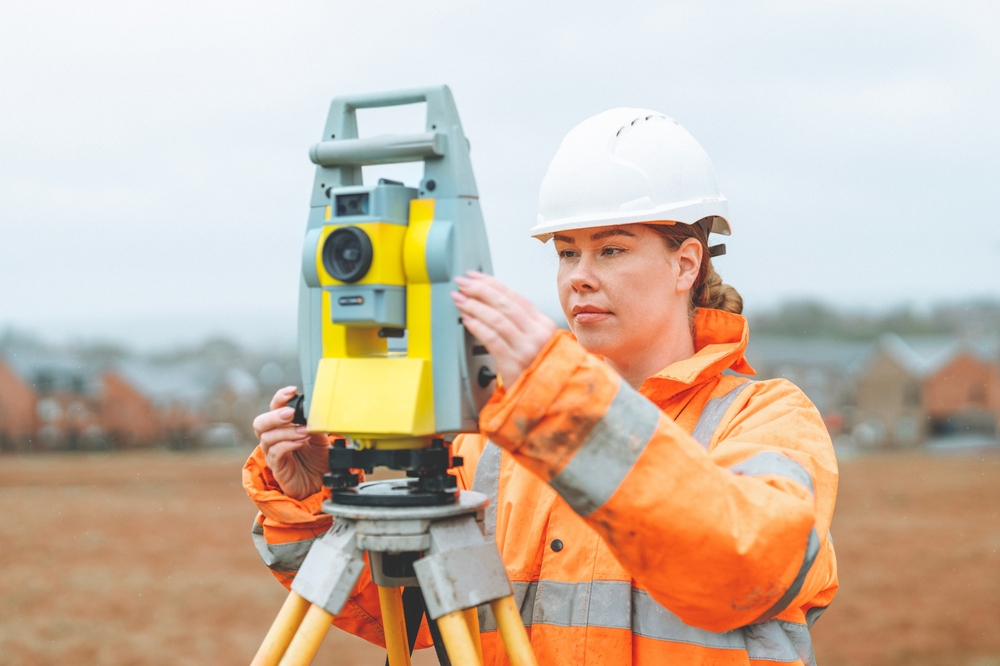

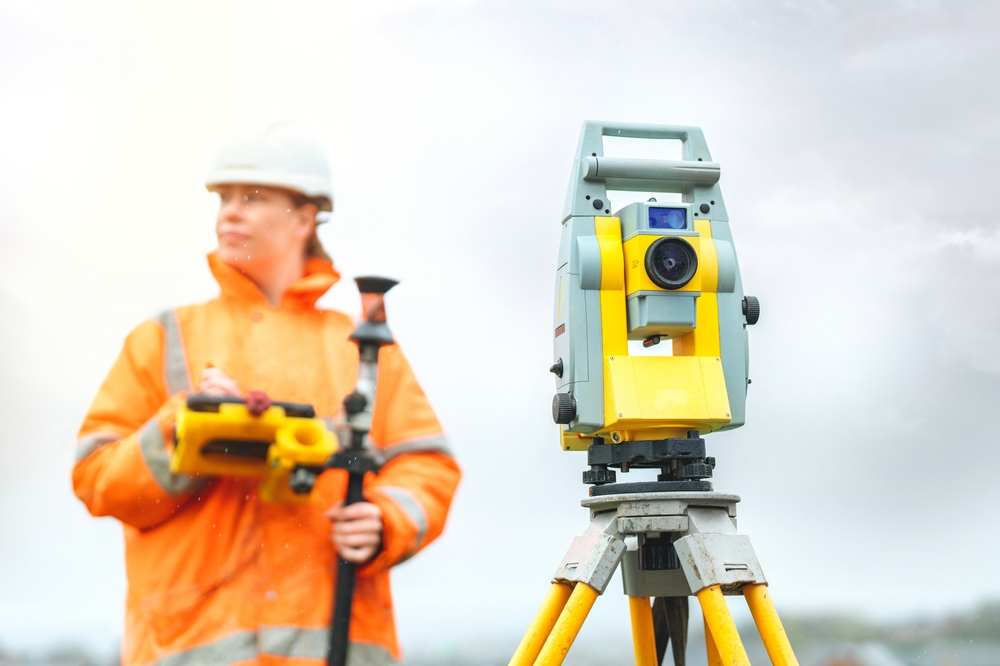

• Total Stations: These electronic/optical instruments integrate angle measurement and distance measurement, allowing surveyors to capture data quickly and accurately. They are widely used for setting out and topographic surveys.

• Global Navigation Satellite Systems (GNSS): GNSS provides precise location data, essential for establishing accurate site levels over large areas. This is useful in open areas where line-of-sight measurements may be challenging.

• Laser Scanners: Laser scanners create detailed 3D models, ideal for complex or large sites.

• Drones: Equipped with high-resolution cameras and GNSS technology, drones can quickly survey large areas, providing detailed aerial imagery and data that can be used to create accurate digital elevation models.

‍

Difference Between Rough Estimates and Precision Surveys

The difference between rough estimates and precision surveys comes down to detail and accuracy. Rough estimates may work for early planning or simple sites. They’re quicker and cheaper but don’t offer enough detail for major decisions.

Precision surveys, on the other hand, are essential for complex or high-stakes projects. These involve detailed data collection using advanced technology to ensure no part of the site is missed. This accuracy helps minimise risks, avoid costly mistakes, and ensure compliance with regulations.

‍

The Link Between Accurate Levels and Maximising Floor Space

On a tricky block, every centimetre counts. Accurate site levels let you unlock the full potential of your land, making room for more usable space while staying within regulations. This section explores how survey data shapes building placement, reduces unnecessary work, and helps you build smarter, not harder.

‍

How Correct Levels Inform Efficient Building Placement

Accurate levels help architects decide the best spot to place structures. On sloped blocks, strategic placement can mean the difference between a design that harmonises with the natural terrain and one that battles against it. By leveraging accurate site levels, builders can:

• Identify Natural High and Low Points: Understanding the natural elevation variations allows for the placement of living areas and other important spaces, taking advantage of views and natural light while ensuring privacy.

• Optimise Orientation and Layout: Proper levels inform the orientation of the building for maximum solar gain and energy efficiency, as well as the layout of the internal spaces to ensure they are functional and aesthetically pleasing.

‍

Reducing Unnecessary Excavation, Retaining Walls, and Structural Work

Accurate site levels reduce the need for cut and fill, which lowers costs and preserves the natural terrain. This benefit is valuable in split-level designs, where buildings can follow the land’s slope with minimal excavation or structural reinforcement.

• Minimising Excavation: Builders can design structures that follow the land's natural slope, reducing the need for extensive excavation. This saves on construction costs and preserves the site's natural integrity.

• Strategic Use of Retaining Walls: Accurate levels help determine their optimal placement and size. This ensures retaining walls are only used where needed.

• Optimising Structural Work: Accurate levels allow for precise planning of foundations and support structures. By understanding the exact slope and soil conditions, builders can design foundations that are not over-engineered.

‍

Designing Within Height Limits While Optimising Usable Floors

In areas with strict height restrictions, designing within these limits while maximising floor space is a common challenge. Accurate site levels are invaluable in this regard.

• Maximising Usable Floor Area: With precise level information, architects can creatively design split-level homes or multi-story buildings that maximise usable floor area without exceeding height limits.

• Enhancing Aesthetic Appeal: Accurate levels enable the design of aesthetically appealing structures that blend with their surroundings, using the natural slope to enhance the building's visual impact and integration with the landscape.

‍

Split-Level Designs: How Survey Data Supports Smarter Layouts

Building on a slope doesn’t mean you have to fight the land; split-level design lets you work with it. With the right survey data, each level of your home or commercial build can follow the natural lay of the land, creating a unique layout that’s functional and striking. Let’s look at how survey insights turn steep sites into smart spaces.

‍

Leveraging Slope for Multi-Level Living or Commercial Space

While a sloped site might seem like a challenge at first glance, it can become a powerful design asset, especially when paired with accurate site levels. With the guidance of precise elevation data and contour mapping, developers can craft tiered floor plans that make full use of the site's vertical dimension.

Benefits of Using Slope to Your Advantage:

• Lower construction impact: Building with the slope can minimise excavation, retaining walls, and fill, reducing costs and environmental impact.

• Increased rental or resale value: Properties with multi-level designs that offer views, natural light, and unique layout benefits tend to attract stronger buyer or tenant interest.

‍

Minimising Cut and Fill While Increasing Functional Area

One challenge on sloped or irregular blocks is achieving a usable, cost-effective building platform without extensive cut and fill. In Australia, excessive excavation can blow out your budget and disrupt the natural environment. But with accurate site levels and strategic planning, it’s possible to minimise earthworks while still maximising the functional space of your home or commercial project.

How Accurate Site Levels Help Reduce Earthworks and Boost Usable Space:

• Strategic placement of the structure: Accurate survey data allows architects to position the building where the land is already most level, limiting the need for major excavation or imported fill.

• Tiered or stepped floor plans: Instead of forcing a flat slab, split-level or cascading designs follow the site’s contours, expanding functional area vertically without flattening the whole block.

• Optimised retaining wall use: Survey insights help determine the minimum number and height of retaining walls needed, making them more cost-effective and structurally sound.

‍

Examples of How Survey Data Shapes Architectural Outcomes

• Natural zoning within the home: This helps position different areas (e.g., living, sleeping, entertaining) at varying heights, creating spatial interest and functional separation without needing full internal walls.

• Optimised foundation work: Rather than flattening the site, survey information guides where to place footings or retaining walls to support the structure in its natural position, saving on earthworks and material costs.

• Better drainage and site access: Survey-guided planning ensures that split levels allow for natural stormwater flow and avoid water pooling.

‍

‍

Avoiding Compliance Issues Through Accurate Site Levels

In Australia, local councils enforce strict planning controls to maintain safety, amenity, and consistency across neighbourhoods. On sloped or irregular blocks, these rules can be difficult to navigate, especially when you’re working with inaccurate or outdated site data. That’s where precise site levels become indispensable.

‍

Floor Height Regulations, Maximum Building Heights, and Setbacks

Australian planning regulations often reference natural ground level (NGL) to assess how high a structure can sit on the land. Sloping sites make these calculations tricky, but not impossible with reliable survey data.

How site levels help:

• Floor height limits: Site levels determine how high above NGL a floor slab can be placed, which is crucial for homes in flood-prone or bushfire-prone areas that require minimum clearance.

• Maximum building height: Councils calculate height limits from the lowest point of natural ground beneath the structure. Accurate contours prevent accidental breaches due to misjudged levels.

• Setback compliance: On sloped sites, setback distances often vary depending on elevation. A detailed survey ensures your building footprint doesn't overstep these invisible lines.

‍

The Role of Surveyors in Ensuring DA-Ready Designs

By producing detailed contour surveys and RLs, surveyors give architects and designers a reliable base to work from, minimising guesswork and reducing the risk of planning breaches.

Their contributions include:

• Establishing true NGL and RLs to accurately calculate height, floor levels, and drainage flow.

• Providing topographical maps that inform where buildings, driveways, and services should be located.

• Supporting documentation for DA submissions, which councils often require as part of the planning process.

‍

Preventing Costly Redesigns or Non-Compliant Builds

Non-compliance doesn’t just delay a project; it can derail it. Failing to meet planning standards can result in DA rejection, mandatory redesigns, stop-work orders, or even demolition in extreme cases.

How accurate site levels save you from these outcomes:

• Early issue detection: You’ll identify and resolve potential non-compliance areas before finalising plans.

• Smooth approval process: A well-prepared submission with detailed site levels increases the likelihood of faster DA approval.

• Avoidance of construction delays: Builders can trust the data when setting out foundations, minimising the risk of errors that lead to costly rectifications.

‍

Drainage, Stormwater, and Site Levels: What Developers Must Know

On a sloped site, what goes down must go somewhere. That’s why drainage planning is a make-or-break part of your design. Councils won’t approve builds that risk flooding neighbours, and poor planning could wash away your budget. This section explores how site levels shape effective, compliant stormwater strategies.

Poor planning can result in water pooling on your site, runoff affecting neighbouring properties, or non-compliance with local drainage codes, all of which can stall or even cancel a project. Developers who understand how site levels influence stormwater flow are better equipped to avoid expensive headaches down the track.

‍

How Slope and Levels Affect Stormwater Design

The slope of the land determines the direction, speed, and volume of water flow. Even small slope changes can shift how water flows.

Key considerations include:

• Water flow direction: Site levels show where water naturally drains and help designers plan suitable flow paths that avoid foundations and outdoor living areas.

• Velocity and erosion control: Steep gradients can increase runoff speed, leading to erosion if not managed with proper vegetation or engineered solutions.

• Site soakage and retention: In some councils, stormwater detention or retention tanks are required to slow the rate of discharge.

‍

Preventing Water Runoff Problems for Neighbours and Council Non-Compliance

In many council areas, it’s illegal for a development to alter natural drainage paths in a way that adversely impacts neighbouring properties. Accurate levels help you follow the rules and avoid legal trouble.

How developers can stay compliant:

• Respecting pre-development flows: Site levels help compare pre- and post-construction flow paths, ensuring water isn’t redirected onto adjoining lots.

• Designing compliant stormwater systems: Councils often require water to be contained and discharged to approved outlets (e.g. kerb, pit, or easement).

• Avoiding disputes: Runoff complaints are one of the most common neighbour disputes.

‍

Surveying’s Role in Pre-Emptive Drainage Planning

Licenced surveyors provide the foundation data for engineers, architects, and hydrologists to model stormwater systems effectively.

Their contributions include:

• Detailed contour and RL mapping: Shows natural drainage patterns, low points, and potential problem areas.

• Finished surface levels (FSLs): Help ensure that post-construction surfaces (like driveways, patios, or garden beds) don’t obstruct or redirect water inappropriately.

• Stormwater pit and pipe layout assistance: Site levels help plan where pits, drains, and overland flow paths are best located to meet council drainage design guidelines.

‍

Designing for Natural Light and Views with Site-Level Data

In some residential and commercial designs, a few features add more value than natural light and panoramic views. Whether it’s catching the morning sun over the ocean or framing bushland outlooks, harnessing these elements can enhance a property’s liveability, energy efficiency, and market appeal. But to get it right, you need one thing from the start: accurate site-level data.

‍

Using Slope to Your Advantage for Outlooks and Ventilation

A sloped site is a structural challenge, yet a design opportunity. When analysed correctly, the slope can be used to lift key living areas above neighbouring rooftops, tree lines, or roadways, giving you better views, privacy, and airflow.

How site slope enhances design potential:

• Elevated perspectives: Building with the fall of the land enables upper levels or terraces to overlook natural features like rivers, bushland, or city skylines.

• Improved cross-ventilation: Stepped designs allow windows and vents to capture breezes from multiple directions, supporting passive cooling and reducing reliance on air conditioning.

• Sunlight access: Slope and orientation data help determine how to avoid shadows cast by neighbouring structures or terrain.

‍

Survey Data’s Role in Positioning Living Areas, Balconies, and Windows

Surveyors supply the elevation data to place rooms and windows where they work best. It’s not just about where things fit; it’s about where they thrive.

Survey data enables:

• Optimised orientation: Ensures living rooms, kitchens, and decks face north (in the southern hemisphere) to maximise winter sun and reduce heat in summer.

• Terraced design decisions: Help architects stagger floors or outdoor areas to avoid blocking sunlight from other parts of the house or neighbouring properties.

• Smart window placement: Indicates which walls or elevations offer the best light and views at different times of day, which is vital for designing welcoming, bright interiors.

‍

Avoiding Design Flaws That Block Light or Views

Design decisions become guesswork without reliable site-level data. Poor placement of walls, rooflines, or internal layouts can accidentally block sunlight or prized views, reducing comfort, functionality, and resale value.

Mistakes avoided through proper site analysis:

• Overbuilding on the high side: This can cast shadows over your own living areas or those of your neighbours, leading to DA objections or redesigns.

• Undersized or poorly located windows: Without knowing precise RLs or orientation, windows might face retaining walls or dark zones instead of opening towards light or vistas.

• Missed opportunities for outdoor living: Terraces, alfresco areas, or rooftop gardens may be placed in wind tunnels or shaded spots if the site’s natural features aren’t considered.

‍

Maximising Basement or Garage Space on Sloped Sites

Think a steep block means no garage or basement? Think again. With smart design and precise data, you can turn that slope into hidden value by tucking garages or lower levels beneath your home. This part covers how to make the most of the land below your feet without sacrificing street appeal or accessibility.

‍

Using Survey Data to Plan for Undercroft Garages or Basements

Accurate contour surveys and RLs are the blueprint for carving out below-ground space without surprises:

• Determine optimal basement depth: Survey levels reveal the natural fall of the block, enabling you to choose the right depth for your basement slab.

• Align basement floor with entry points: By knowing spot heights at the street and rear of the block, you can position your garage so vehicles enter at near-level grades.

• Integrate services and drainage: Site levels help engineers plan sump pits and discharge points to avoid water ingress.

‍

Minimising Visible Bulk While Increasing Usable Area

Nobody wants a looming concrete box at the front of the property. Here’s how survey-driven design keeps your massing discreet:

• Step building volumes into the slope: Use contour lines to stagger your basement walls so portions tuck entirely below natural ground, reducing visible façade and blending into the landscape.

• Blend retaining walls with landscaping: Precise RLs allow you to set retaining walls at minimal heights, giving opportunities for planter beds, terraced gardens, or screen planting that hide bulk and soften the building’s base.

• Create daylight basements: Where the slope allows, orient windows and light wells into the bank to bring natural light into the basement, turning storage areas into home gyms, studios, or secondary living zones.

‍

Site Levels’ Influence on Driveway Gradients and Accessibility

A well-designed driveway ensures safety, ease of use, and code compliance. Too steep and you risk scraping; too shallow and your basement may flood.

• Calculate compliant gradients: Australian standards typically recommend a maximum cross-fall of 1 in 8 (12.5%) for residential driveways. Accurate slope data lets you model ramp lengths and transitions to meet these requirements.

• Plan smooth transitions: Spot heights at the kerb, top of ramp, and garage threshold guide the creation of roll-over entries that avoid abrupt changes, ensuring vehicles with low front overhangs clear the entry without bottoming out.

• Ensure pedestrian safety: With survey-backed plans, you can integrate walkways alongside ramps at comfortable inclines, keeping foot traffic safe and accessible for all users.

‍

In a landscape as varied and challenging as Australia’s, accurate site-level data is helpful. From unlocking valuable floor space on sloped blocks to ensuring compliance with council regulations, stormwater controls, and building height limits, precision surveying lays the foundation for smart, sustainable design. Whether you’re planning a split-level home, a commercial build with undercroft parking, or simply want to maximise light, views, and usability, starting with detailed site levels will save time, reduce costs, and enhance the outcome. Before breaking ground, partner with a qualified land surveyor and turn even the most complex site into your project’s greatest asset.
