Survey requirements for solar, wind and infrastructure projects are becoming more complex as planning frameworks tighten and projects grow in scale. MCS Surveyors works at the intersection of planning legislation, engineering design and construction delivery, helping project teams understand how survey inputs support each stage of development. This article provides a clear overview of how cadastral, detail and feature surveys, engineering setout and as-built documentation interact with key approval and delivery pathways across major energy and infrastructure projects.
For developers and project teams working with surveyors in Shellharbour, understanding survey requirements early can make a significant difference to planning, design coordination and construction delivery. This article explains how accurate survey control and early spatial planning can support land acquisition, easement creation, layout planning, access corridors, grid connection and compliance requirements. By understanding what regulators, designers, financiers and constructors typically expect, proponents can scope survey work more effectively, manage project risks earlier and programme budgets and milestones with greater confidence.
Renewable energy projects in New South Wales rely on accurate survey data from early feasibility through to construction and operation. Developers, planners and contractors need to understand which survey types are required at each stage so they can scope work properly, manage risk and support approvals, design and delivery.
While the exact survey package depends on whether the project is a solar farm, wind farm or associated linear infrastructure such as transmission lines or access roads, most projects rely on three core survey categories: cadastral and land tenure surveys, topographic and feature surveys, and construction setout with final as-built documentation. Together, these establish the legal footprint of the project, define the physical characteristics of the site and ensure the works are built in the correct position and level.
Cadastral surveys define legal property boundaries, easements and title restrictions that affect where project infrastructure can be located. For solar and wind developments, this usually begins with confirming title boundaries, identifying any occupation issues and re-establishing critical corners or reference marks on site.
Surveyors prepare plans suitable for NSW Land Registry Services, including plans of survey, subdivision plans and easement plans for cables, access routes or transmission corridors. These surveys support landowner agreements, grid connection corridors and compliance with setback or buffer requirements. Accurate cadastral data reduces the risk of boundary disputes and helps ensure infrastructure is positioned within legal limits from the outset.
Feature and topographic surveys capture the physical condition of the site so planners and designers can make informed decisions about layout, grading, drainage and access. For solar farms, this includes terrain levels, drainage lines, dams, vegetation, fences and visible services. For wind projects, it may also include ridge lines, track alignments and proposed turbine or hardstand areas.
Using GNSS, total stations and, where appropriate, aerial capture, surveyors produce terrain models and site plans referenced to current NSW spatial datums. Designers use this information to refine infrastructure layouts, assess cut and fill requirements and coordinate civil, structural and environmental inputs across the development footprint.
Once the design is approved, survey work shifts from defining the site to supporting construction. Setout surveys are used to position piles, footings, cable trenches, roads, substations, turbine foundations and other assets in accordance with the approved design and tolerances.
At completion, as-built surveys record the final location and level of key infrastructure so project teams have an accurate record of what has been constructed. These records are important for compliance, grid connection, operations, maintenance and future upgrades. Where required, monitoring surveys may also be undertaken during construction to track movement, settlement or the effect of works on nearby assets.
Planning and development approvals rely on survey information that clearly defines the project footprint, physical site constraints and relationship to adjoining land. Councils, state agencies and approval bodies expect survey outputs that are accurate, legible and aligned with the requirements of the Environmental Planning and Assessment Act 1979, relevant planning instruments and any project-specific consent pathway.
Professional survey input at this stage is less about construction accuracy and more about giving planners, designers and approval authorities a reliable spatial basis for assessment. Well-prepared survey information helps reduce requests for further information, supports cleaner planning drawings and lowers the risk of redesign later in the process.
During site selection and early feasibility, survey data helps identify whether a project layout is realistic before detailed design begins. Feature and topographic surveys are used to understand terrain, access, visible constraints and the amount of usable land available for arrays, turbines, roads, compounds and associated infrastructure.
For linear works such as transmission connections or access roads, route selection surveys allow alternative alignments to be compared against physical and planning constraints. This information supports early constraints mapping, concept layouts and planning reports, helping project teams choose pathways that are more likely to be practical and approvable.
Planning applications also need to show that proposed works sit within the correct land parcels and account for any tenure or easement constraints. Cadastral surveys confirm legal boundaries, identify discrepancies between title and occupation and provide the basis for planning drawings that accurately reflect ownership and access rights.
Where a project crosses multiple lots or depends on new easements for access, cables or other services, this information needs to be clearly defined early. Accurate lot-by-lot survey data supports planning documentation, landowner agreements and future registration work once consent is granted.
Once a project receives approval, survey information is often needed to demonstrate that consent conditions have been addressed in the detailed design and later during construction. Conditions may relate to setbacks, structure heights, finished levels, environmental buffers, access routes or protection of existing infrastructure.
Detailed survey data allows designers to respond to these conditions before work begins. Later, setout and as-built surveys help verify that the completed works remain within the approved footprint and tolerances. In this way, survey work helps bridge the gap between planning approval and compliant delivery.
For large renewable and infrastructure projects, boundaries, easements and access corridors are not just legal matters in the background of the project. They directly influence layout, constructability, approvals and long-term operational access. If these elements are poorly defined early, projects can face redesign, landowner disputes and delays in securing tenure or construction access.
This part of the survey process focuses on translating title information and physical site conditions into a workable land framework for the project. It helps determine where infrastructure can legally sit, where access can be obtained and what land interests need to be created, adjusted or protected.
The starting point is a cadastral survey that reconciles title boundaries with occupation and existing site conditions. Surveyors review registered plans and title records, then compare them against what is actually present on the ground, such as fence lines, roads, tracks and watercourses.
This work is especially important on large rural holdings where boundaries may be older, poorly marked or inconsistent with digital mapping. For solar and wind projects, unresolved boundary issues can affect setbacks, internal layouts and the location of key infrastructure such as substations or connection assets.
Most major projects interact with existing easements or require new ones. These may relate to transmission lines, underground cables, access, drainage, pipelines or shared service corridors. Surveyors identify registered easements through title and plan review, then define their location on the ground so designers can understand the real constraints they impose.
Where new easements are needed, survey work helps establish alignments, widths and legal descriptions that are suitable for design, environmental assessment, landowner negotiations and eventual registration. This reduces ambiguity and supports a cleaner approval and delivery process.
Access needs to be considered not only for initial construction but also for ongoing maintenance and asset management. Boundary and easement surveys help determine whether existing road frontage is sufficient or whether new rights of way are needed across private land.
Surveyors assess existing access points, route widths, terrain, crossings and corridor constraints so proposed tracks and roads can be designed around the needs of heavy vehicles, safety clearances and drainage. On complex sites, this information is essential for establishing practical access arrangements that work both during construction and across the life of the project.
Topographic, detailed and feature surveys are the starting point for planning any solar farm, wind project or major infrastructure site in NSW. They provide an accurate digital model of the landform and all visible features so designers and engineers can assess feasibility, optimise layouts and manage earthworks and drainage with confidence.
For large-scale projects covering hundreds of hectares, the survey approach needs to be carefully planned. Surveyors combine traditional ground surveys with aerial methods to capture the required accuracy over large areas while managing cost and programme constraints.
A topographic, detailed and feature survey for a large energy or infrastructure site typically captures:
For solar farms, this information is used to set out panel rows, inverter locations, cable routes and internal roads while minimising cut and fill. For wind projects, it supports turbine siting, crane hardstands, access tracks and cable routes. For transport and civil infrastructure, it underpins alignment design, intersection treatments and stormwater design.
On large NSW sites, experts use a mix of survey technologies so the right level of accuracy is applied in the right locations.
Aerial drone or aircraft-based LiDAR and photogrammetry are often used to capture broad-scale topography quickly. This is suited to greenfield paddocks, ridgelines and open land where line of sight is clear. Ground surveys using GNSS and total stations then target higher accuracy areas such as:
On steeper or erosion-prone sites, additional cross sections may be captured along ridgelines, gullies and proposed access tracks to improve earthworks modelling.
For design teams and planners, the value of this survey is in the quality and usability of the data delivered. Surveyors commonly provide:
Data is usually supplied on MGA coordinates and AHD levels to comply with standards and to integrate easily with other project datasets such as geotechnical investigations, subdivision plans and environmental constraints mapping.
Environmental, flood and bushfire constraints strongly influence how infrastructure projects are surveyed and designed. Before layout or engineering decisions can be finalised, professionals must identify these constraints and collect the right spatial data so that planning, assessment and approvals can proceed efficiently.
The survey scope will often expand beyond a simple site boundary to capture waterways, vegetation, overland flow paths, asset protection zones and evacuation routes. Getting this information early helps designers minimise impacts on sensitive land, protect assets from flood or fire risk and meet council and state planning requirements.
Environmental constraints typically start with a review of NSW Planning Portal layers, the Biodiversity Values Map, the Native Vegetation Regulatory Map and any local habitat mapping. Based on these desktop findings, it’s necessary to tailor the field survey to locate features that matter for environmental and biodiversity assessment.
On the ground, this can include a detailed pick up of:
Survey data is usually supplied to ecologists and planners so buffers, offsets and exclusion zones can be modelled accurately. For solar farms, this can determine which paddocks can accommodate arrays without triggering the biodiversity offset scheme. For wind and linear infrastructure projects, it often guides final alignments to avoid high-value vegetation or habitat where possible.
Flood risk is a major driver of survey scope, particularly in floodplain areas. Councils and the NSW government rely on accurate terrain models to understand flood behaviour, so topographic survey requirements are often more detailed in these areas.
Surveyors will typically be asked to:
LiDAR or drone-based surveys may be used for broader catchment coverage with ground control to improve vertical accuracy.
For sites mapped as bushfire-prone land, the survey must provide the information needed for BAL assessments and APZ design. This is important for solar farms with extensive perimeter fencing and for substations or control buildings associated with wind or transmission projects.
Surveyors map:
These surveyed features allow bushfire consultants to apply the NSW RFS guidelines and determine required APZ widths and construction standards.
Transmission corridors, access roads and utility services are critical to connect solar and wind projects to the grid and public networks. These linear assets usually traverse multiple properties and sensitive environments, so survey work must be precise, compliant and coordinated with planning and environmental approvals.
Surveyors provide the control, detail, cadastral and setout surveys required from early route selection through to construction and as-built documentation. The goal is to secure legal access, minimise clashes and manage gradients and clearances so that infrastructure can be built once and built correctly.
For transmission lines, underground cables, gas or water pipelines and access roads, survey support starts during corridor planning. Experts capture existing ground levels, natural features and man-made constraints such as dwellings, sheds, access tracks, fences and existing services.
Cadastral surveys identify property boundaries, easements, road reserves and encroachments. This is essential before negotiating easements or acquisitions with landowners and before lodging plans with NSW Land Registry Services. They prepare subdivision and easement plans for transmission line corridors, access roads, shared trenches and substations so that tenure accurately reflects the final infrastructure locations.
Once a preferred route is selected, accurate survey control is established along the alignment using GNSS and total stations referenced to spatial datums. Vertical control is critical for road grades, drainage and for ensuring minimum conductor clearances for overhead lines are met across varied terrain.
For construction, surveyors set out:
Real-time survey checks during stringing, trenching and pavement works help avoid costly rework and ensure safety requirements like clearance envelopes and separation from existing services are satisfied.
At completion, as-constructed surveys verify that infrastructure has been built in accordance with design, approvals and utility-authority standards. Surveyors capture final tower positions, conductor height profiles, road widths, pavement levels, culvert inverts and the true position and depth of underground services. Accurate spatial data is essential for ongoing asset management, future upgrades and for resolving any boundary or access queries that may arise over the life of the solar or wind project.
Once the required survey scope is understood, the next question is how that work should be delivered. The right survey method depends on project size, terrain, vegetation cover, required accuracy, access conditions and the stage of the project. For most large renewable and infrastructure developments, no single method is enough on its own.
Instead, surveyors usually combine multiple techniques in a staged programme so broader site data can be captured efficiently while critical areas still receive the level of precision required for design, approvals and construction. Choosing the right combination improves efficiency without sacrificing reliability.
For large greenfield sites, aerial methods such as drone photogrammetry, LiDAR or aircraft-based capture can be effective for gathering broad topographic information across extensive areas. These methods are useful for understanding overall landform, drainage patterns, ridgelines, access routes and general site constraints during feasibility and concept design.
However, broad-area capture still needs to be tied to accurate control and checked against field conditions. It is most effective when used as part of a wider survey strategy rather than as a standalone source of truth.

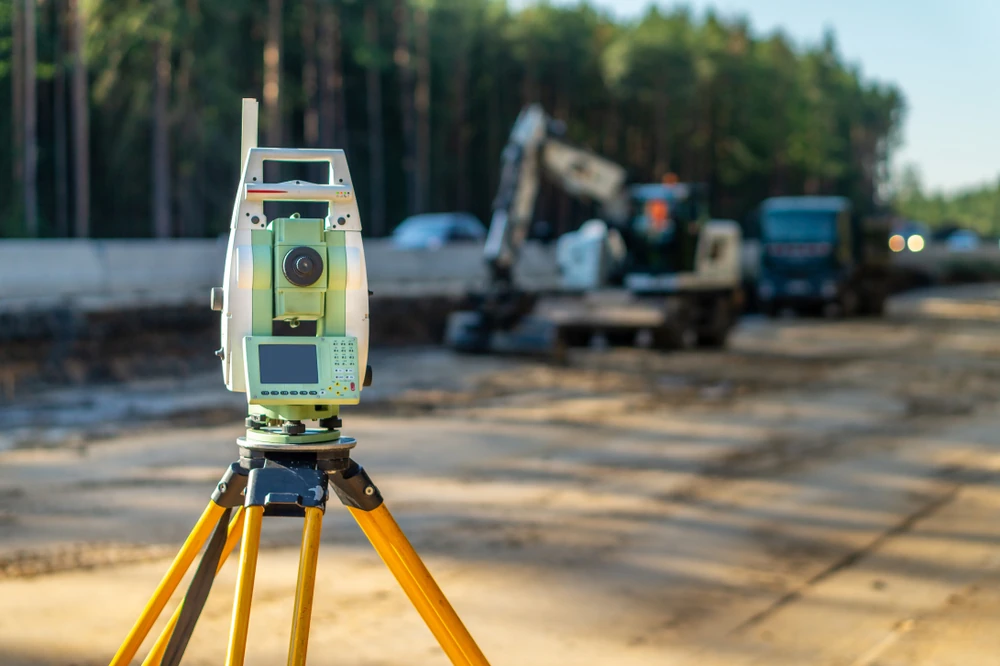

Ground-based survey methods such as GNSS and total stations remain essential where higher precision is required. These techniques are used for areas such as substations, turbine foundations, road tie-ins, culvert crossings, dense vegetation zones and other locations where aerial data may be limited or where tighter tolerances apply.
They are also critical for cadastral work, construction setout and final as-built surveys, where the legal or engineering implications of error are much greater. In practice, these methods provide the detailed control needed to support confident design and accurate construction.
As projects move into construction, the methodology may need to expand again to include monitoring and verification. Depending on the risks involved, this can include precise levelling, repeated total station observations or automated monitoring systems for structures, embankments or nearby assets.
The method chosen should reflect the consequences of movement, the tolerance requirements of the design and any conditions imposed by approval bodies or asset owners. At this stage, survey methodology is not just about data capture efficiency but also about compliance, risk management and long-term asset confidence.
Delivering successful solar, wind and infrastructure projects depends on getting the survey scope right from the beginning. Each stage, from feasibility and planning through to detailed design, construction setout and final as-built documentation, relies on accurate spatial information that is matched to the project’s legal, technical and approval requirements.
When cadastral definition, topographic detail, easements, access corridors and construction verification are planned as part of one coordinated survey strategy, project teams are better placed to reduce redesign, avoid delays and manage risk across the life of the development. For large and complex projects, survey work is not just a supporting service. It is a core part of how land, design, approvals and delivery are brought together successfully.
